A brief Product Description with key features and some other details.
Standard sizes offered (width × depth):
· 3 m × 3 m
· 4 m × 3 m
· 6 m × 3 m
· 6 m × 4 m
Every model can be ordered with one of three functional configurations:
· Manual operation (without LED lighting)

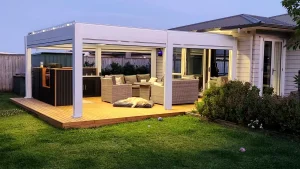

· Motorized with built‑in LED lighting

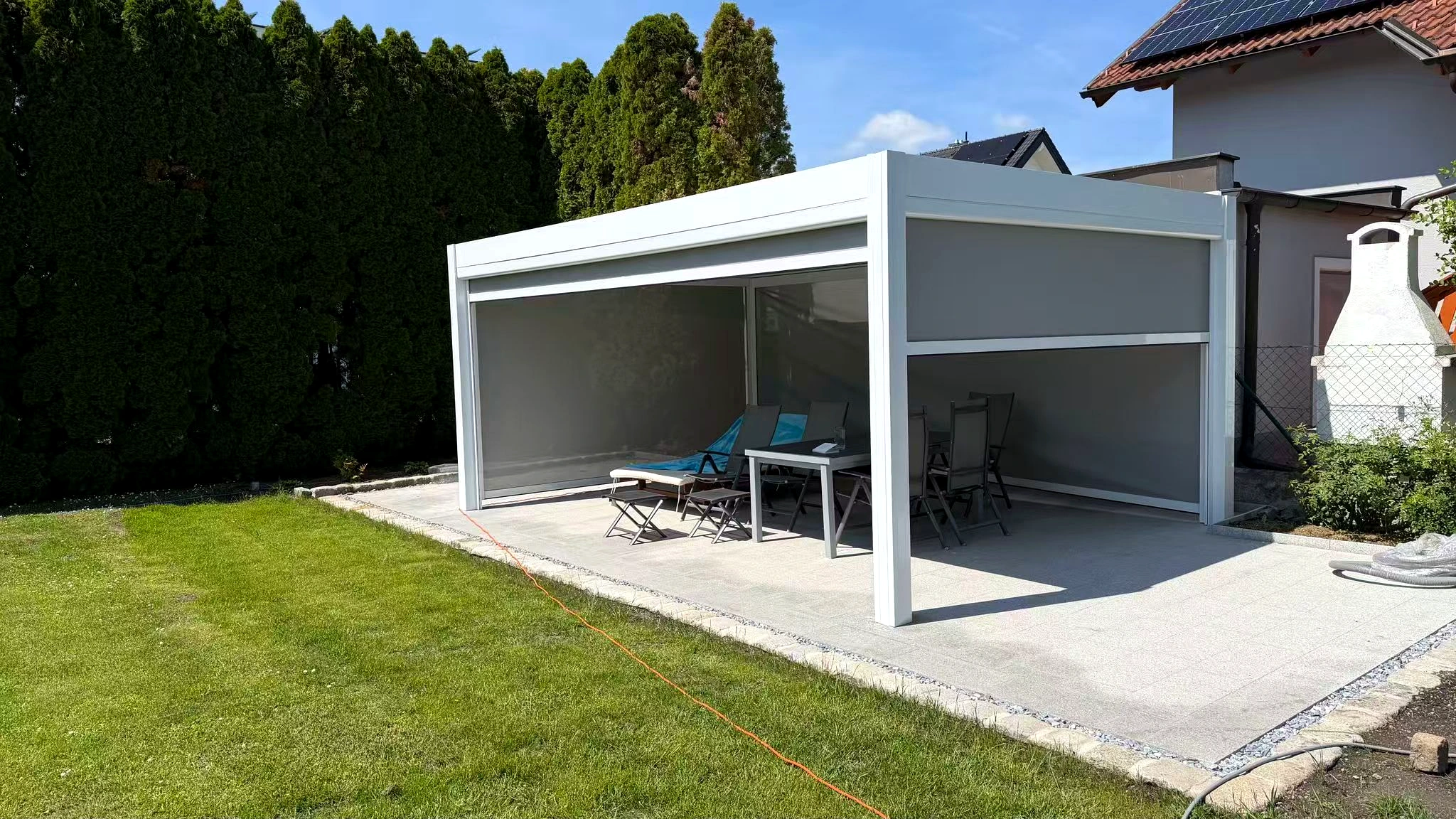

· Motorized with full‑perimeter roller blinds
Model‑150 (equipped with heavy‑duty bearing drive system)
· Column: 100×100 mm, wall thickness 2.0 mm
· Beam: 150×150 mm, wall thickness 1.6 mm
· Louver: 150×30 mm, wall thickness 1.25 mm
Model‑175
· Column: 135×135 mm, thickness 2.0 mm
· Beam: 180×150 mm, thickness 1.7 mm
· Louver: 175×40 mm, thickness 1.5 mm
Model‑200 (equipped with heavy‑duty bearing drive system)
· Column: 150×150 mm, thickness 2.0 mm
· Beam: 200×150 mm, thickness 2.4 mm
· Louver: 200×40 mm, thickness 1.6 mm
Model‑220 (equipped with heavy‑duty bearing drive system)
· Column: 150×150 mm, thickness 3.0 mm
· Beam: 230×150 mm, thickness 2.5 mm
· Louver: 220×53 mm, thickness 1.8 mm
Full manufacturing and customization detail, verified against our current production line for this model.
A structural profile suited to residential, hospitality, and commercial outdoor spaces.
A manufacturing partner engineered around the details that matter for repeat B2B orders.
No trading-company markups. You buy straight from our Zhejiang production line, with full cost transparency on every quote.
Custom sizing, shape, finish, and logo, engineered from your drawing or ours, with proofs before production starts.
Every batch is inspected against galvanization thickness and weld-seam standards before it ships from our facility.
Talk to someone who understands steel gauge and MOQ math, not a chatbot script. Replies inside 12 business hours.
This product don't have any reviews yet. The customers with verified purchases are allowed to review.
Share your target size, quantity, and finish, our sales engineers will follow up with pricing, MOQ, and lead time tailored to your order.
